Transistors are the heart of modern electronics, enabling everything from simple amplifiers to complex computing systems. Among the different types, the PNP transistor plays a vital role in controlling current flow, signal amplification, and switching operations. As a part of the Bipolar Junction Transistor (BJT) family, the PNP transistor is known for using holes as majority charge carriers, making it essential in circuits where negative polarity control is required.
What is a PNP Transistor?
A PNP transistor is a bipolar junction transistor made up of two p-type semiconductors separated by a thin n-type layer. It consists of three regions: the Emitter (E), Base (B), and Collector (C).
The PNP transistor operates by controlling the flow of charge carriers (holes) from the Emitter to the Collector. Unlike an NPN transistor, which uses electrons as majority carriers, the PNP transistor depends on the movement of holes, making its operation opposite in polarity.
In simple terms, when a small negative current flows into the base, it allows a larger current to flow from the emitter to the collector. This characteristic makes PNP transistors ideal for high-side switching and positive voltage control applications.

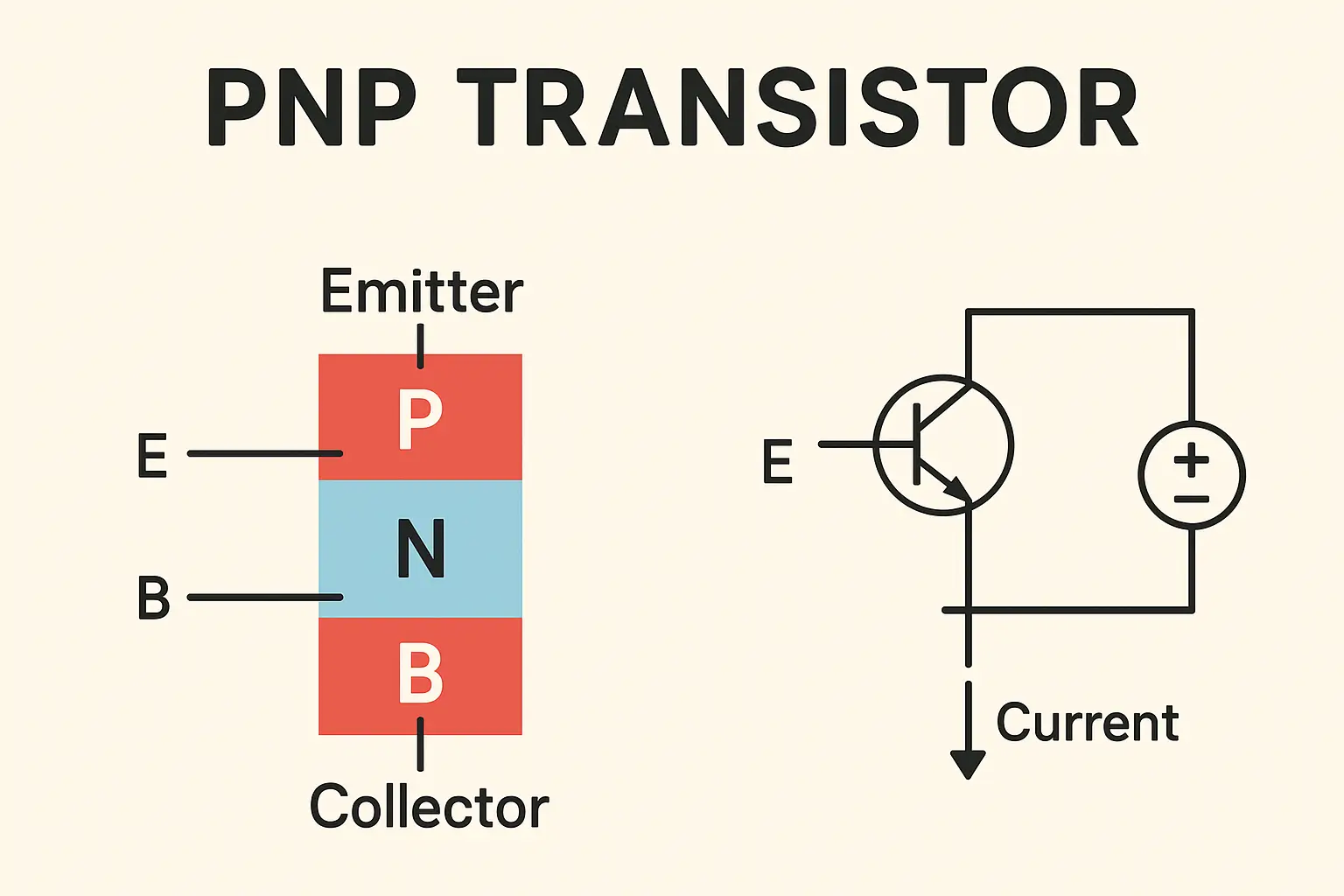

Construction of PNP Transistor
The PNP transistor is constructed by sandwiching a thin n-type base between two p-type layers.
- The Emitter region is heavily doped to supply a large number of holes.
- The Base region is thin and lightly doped to allow easy carrier movement.
- The Collector region is moderately doped and larger in size to collect carriers efficiently.
Three terminals extend from these regions:
- Emitter (E): Emits holes into the base.
- Base (B): Controls the number of holes entering the collector.
- Collector (C): Collects holes flowing from the emitter through the base.
When the base-emitter junction is forward biased and the base-collector junction is reverse biased, the transistor becomes active and conducts current.
Working of PNP Transistor
The operation of a PNP transistor is governed by the movement of holes from the emitter to the collector.
When a small current flows out of the base (making the base terminal more negative relative to the emitter), the base-emitter junction becomes forward-biased, allowing holes from the emitter to move into the base. Since the base is thin and lightly doped, most of these holes cross into the collector region, creating a large collector current (Ic).
The current relationship in a PNP transistor is given by:
Iₑ = I𝒸 + Iᵦ
Here:
- Iₑ is the emitter current,
- I𝒸 is the collector current,
- Iᵦ is the base current.
The emitter current is the largest, as it consists of both the collector and base currents. The transistor continues to conduct as long as the base remains slightly negative relative to the emitter.
In digital applications, when the base is low (0V), the transistor turns ON, and when the base is high (positive voltage), it turns OFF. This reverse polarity behavior differentiates it from the NPN transistor, which turns ON when the base is positive.
Voltage and Current Flow in PNP Transistor
In a PNP transistor:
- The Emitter-Base junction is forward-biased (emitter at higher potential).
- The Collector-Base junction is reverse-biased.
- Current flows from the emitter to the collector, while conventional current direction is opposite to electron flow.
Because holes are the primary carriers, the transistor’s current direction and polarity are opposite to that of an NPN transistor.
Applications of PNP Transistor
The PNP transistor is widely used in both analog and digital circuits. Some of its key applications include:
1. Switching Circuits
PNP transistors are used in high-side switching, where the load is connected to the ground, and the transistor controls the positive supply line.
2. Amplifiers
They function as signal amplifiers in audio, RF, and instrumentation circuits, especially in push-pull amplifier pairs with NPN transistors.
3. Current Mirrors
PNP transistors are essential in analog integrated circuits (ICs) for creating current mirror circuits that ensure consistent current flow.
4. Voltage Regulators and Power Control
They help regulate voltage and current in power supply circuits, providing stable performance under variable loads.
5. Complementary Pair Configurations
PNP transistors often pair with NPN transistors to form complementary push-pull stages, improving efficiency and reducing distortion in amplifiers.
Advantages of PNP Transistor
PNP transistors offer several advantages, including efficient high-side switching, as they can easily control the flow of positive current. They are ideal for positive voltage circuits and work well in complementary pair configurations with NPN transistors. PNP transistors also provide stable operation in low-noise and low-frequency applications, making them suitable for amplifiers, regulators, and analog signal control.
PNP vs. NPN Transistor
While both are BJTs, the key difference lies in their polarity and charge carriers:
- PNP transistors use holes and operate with negative base current.
- NPN transistors use electrons and need positive base current.
PNP transistors are more suitable for positive voltage systems, while NPN transistors are preferred in negative or ground-referenced circuits due to faster electron mobility.
Conclusion
The PNP transistor is a cornerstone in analog and digital electronics, enabling current control, amplification, and switching with precision. Understanding its construction, working principle, and applications is crucial for designing efficient electronic systems.
As semiconductor technology continues to advance, PNP transistors remain integral to the foundation of modern circuits, complementing their NPN counterparts in nearly every electronic device.
Frequently Asked Questions (FAQ) About PNP Transistor
1. What is a PNP transistor?
A PNP transistor is a type of bipolar junction transistor (BJT) that uses holes as majority charge carriers. It consists of two P-type semiconductor layers separated by a thin N-type layer and allows current to flow from the emitter to the collector when the base is negatively biased.
2. How does a PNP transistor work?
A PNP transistor works when the base is slightly negative relative to the emitter. This forward-bias condition allows holes to move from the emitter to the collector, enabling current flow through the device. The transistor remains ON when the base is low and OFF when the base is high.
3. What is the symbol of a PNP transistor?
The PNP transistor symbol includes three terminals — Emitter (E), Base (B), and Collector (C) — with the arrow pointing inward on the emitter leg, indicating current flow into the transistor.
4. What is the difference between PNP and NPN transistors?
The key difference lies in charge carriers and polarity.
- PNP transistors use holes as carriers and turn ON with negative base current.
- NPN transistors use electrons as carriers and turn ON with positive base current.
5. What are the main applications of PNP transistors?
PNP transistors are used in amplifiers, switching circuits, current mirrors, voltage regulators, and complementary push-pull amplifier pairs in combination with NPN transistors.
6. Why are PNP transistors used for high-side switching?
In high-side switching, the load is connected to ground, and the transistor controls the positive voltage supply. Since the emitter is connected to the positive voltage, PNP transistors are ideal for this configuration.
7. What happens when the base of a PNP transistor is positive?
When the base becomes positive relative to the emitter, the base-emitter junction becomes reverse-biased, and the transistor turns OFF, stopping current flow between the emitter and collector.
8. What are common materials used to make PNP transistors?
PNP transistors are typically made from silicon or germanium semiconductors. Silicon-based transistors are more common due to their stability, cost-effectiveness, and temperature tolerance.
9. Can a PNP transistor amplify signals?
Yes. In its active region, a PNP transistor can amplify current and voltage signals. Small variations in base current lead to large variations in collector current, making it suitable for analog amplification.
10. How can you identify a PNP transistor using a multimeter?
Using the diode test mode, connect the multimeter’s positive probe to the base and the negative probe to the emitter or collector. If both junctions show a voltage drop (around 0.6–0.7V), it confirms a PNP transistor.
Author’s comment
So friends, I’m Pralay Bhunia, I hope I’ve been able to help you with this information about PNP transistor. If you have any more questions or suggestions, please feel free to share them in the comments. Your support always inspires me to share more new information.
