Gear: Parts, Types, Applications

The concept of gears has revolutionized the way humans design machines. A gear is not simply a rotating wheel with teeth; it is the very foundation of mechanical motion transmission. Since ancient civilizations, gears have been used in watermills, astronomical devices, and mechanical clocks. Today, they power everything from tiny wristwatches to massive turbines in power plants.

In modern mechanical systems, gears remain vital because they offer precision, reliability, and efficiency. The principle of gear operation is based on the transfer of motion and torque through the meshing of teeth. This enables engineers to adjust speed, control torque, and change motion direction according to requirements. Without gears, the development of automobiles, robotics, and heavy machinery would have been impossible.

Definition of Gear

A gear is a mechanical component consisting of a wheel with teeth (cogs) cut around its rim, designed to mesh with another toothed element for torque transmission. Unlike belts or chains, which can slip, gears provide positive transmission without loss of motion.

When two gears mesh, the larger one is called the gear, and the smaller one is called the pinion. Their size relationship determines the gear ratio, which dictates how speed and torque are modified.

The American Gear Manufacturers Association (AGMA) defines a gear as:

“A mechanical element that transmits motion and power between rotating shafts by means of progressive engagement of projecting teeth.”

Parts of a Gear

Understanding the anatomy of a gear is essential for studying its performance. Each part has a unique role in defining its function and efficiency.

Axis

The axis is the imaginary or physical line around which the gear rotates. In practical applications, it is the shaft on which the gear is mounted.

Teeth

The most visible part of a gear, teeth are designed to interlock with another gear’s teeth. Their shape, spacing, and precision determine smoothness of operation. A properly designed tooth profile ensures continuous contact and minimizes vibration.

Pitch Circle

The pitch circle is an imaginary reference circle that defines the contact point where gear teeth theoretically engage. It is fundamental in calculating gear ratios.

Pitch Diameter

Pitch diameter is the diameter of the pitch circle. For two meshing gears, the ratio of their pitch diameters equals the gear ratio.

Diametral Pitch

This measures the number of teeth per inch of the pitch diameter. A higher diametral pitch means smaller teeth.

Circular Pitch

Circular pitch is the distance along the pitch circle from one tooth to the next, measured from a point on one tooth to the corresponding point on the adjacent tooth.

Module

Used in metric systems, the module is the ratio of the pitch diameter to the number of teeth. It standardizes gear dimensions for design and manufacturing.

Pressure Angle

The pressure angle is the angle between the line of action (the path along which the force is transmitted) and the tangent to the pitch circles. Common values are 20° and 25°, influencing load capacity and efficiency.

Types of Gears

Over centuries, engineers have developed multiple gear types to suit different requirements of load, speed, and direction.

Spur Gear

Spur gears have straight teeth parallel to the axis. They are the simplest and most widely used gears. Despite producing noise at high speeds, they are highly efficient and cost-effective. Applications include clocks, washing machines, and simple gearboxes.

Helical Gear

Helical gears have teeth cut at an angle, allowing gradual contact and smoother transmission. They can handle higher loads and operate quietly compared to spur gears. Helical gears are common in automotive gearboxes and industrial machinery.

Gear Rack

A gear rack is a straight or flat gear that meshes with a cylindrical pinion. It converts rotational motion into linear motion, commonly seen in steering systems.

Bevel Gear

Bevel gears have conical shapes and are used to transmit motion between intersecting shafts, often at right angles. They are used in printing presses and hand drills.

Spiral Bevel Gear

A variation of bevel gear with curved teeth, ensuring gradual contact and smoother operation. Spiral bevel gears are used in high-performance vehicles and aircraft engines.

Screw Gear

Also known as crossed helical gears, screw gears transmit motion between non-parallel, non-intersecting shafts. They are suitable for low-power applications.

Double Helical Gear

Also called herringbone gears, they feature two sets of helical teeth placed in opposite directions, canceling out axial thrust. They are used in heavy-duty machinery such as turbines.

Herringbone Gear

A type of double helical gear without a gap between teeth sets. They are ideal for continuous, high-load applications like rolling mills.

Hypoid Gear

Hypoid gears allow shafts to be offset, making them essential in automobile differentials. They combine the benefits of bevel and worm gears.

Miter Gear

A bevel gear with a 1:1 ratio, used for transmitting power at right angles without altering speed. Common in conveyor systems.

Worm Gear

A worm gear consists of a screw (worm) meshing with a gear (worm wheel). It allows high reduction ratios and provides self-locking capability. Worm gears are used in elevators and tuning instruments.

Internal Gear

Internal gears have teeth cut inside their body, allowing compact arrangements. They are crucial in planetary gear systems used in automatic transmissions.

Applications of Gears

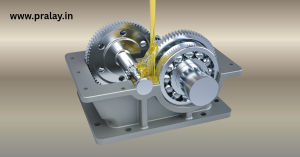

gear box images
gear box images

Gears are universally applied wherever power and motion need to be transmitted with precision.

  • Automotive Industry: Gearboxes, differentials, and steering systems rely heavily on gears.
  • Aerospace Engineering: Aircraft turbines and helicopter rotors use specialized gears.
  • Industrial Machinery: Gears drive conveyor belts, mixers, and rolling mills.
  • Medical Devices: Dental drills and surgical robots incorporate miniaturized gears.
  • Consumer Products: From clocks to washing machines, gears are part of everyday life.

A market analysis by Fortune Business Insights states that the global gear market is projected to reach USD 80 billion by 2030, driven by industrial automation and electric vehicle adoption.

Benefits of Gears

Advantages

  • Provide accurate speed and torque transmission.
  • Enable compact designs compared to belt or chain drives.
  • Can transmit motion between parallel, intersecting, or skewed shafts.
  • High reliability and efficiency under proper lubrication.
  • Long service life if maintained correctly.

Disadvantages

  • High manufacturing and installation costs due to precision requirements.
  • Require continuous lubrication to reduce wear and friction.
  • Can generate noise and vibration, especially spur gears at high speed.
  • Efficiency losses due to friction between teeth.
  • Cannot handle very long-distance power transmission (unlike belts or chains).

Conclusion

Gears remain a cornerstone of mechanical engineering, playing a vital role in industries ranging from transportation to robotics. Understanding their parts, types, and applications not only deepens engineering knowledge but also highlights their impact on modern technology. Despite certain limitations, their precision, efficiency, and versatility make them irreplaceable in power transmission systems.

Frequently Asked Questions (FAQ)

What is a gear?

A gear is a rotating machine element with teeth designed to mesh with another toothed part to transmit torque and motion. It changes speed, direction, or torque in mechanical systems.

What are the main parts of a gear?

The essential parts of a gear include the axis, teeth, pitch circle, pitch diameter, diametral pitch, circular pitch, module, and pressure angle. These elements define how gears engage and function.

How many types of gears are there?

There are several types of gears, including spur gear, helical gear, rack and pinion, bevel gear, spiral bevel gear, screw gear, double helical gear, herringbone gear, hypoid gear, miter gear, worm gear, and internal gear. Each type serves a unique application.

What is the difference between spur and helical gears?

Spur gears have straight teeth and are efficient but noisy at high speeds. Helical gears have angled teeth, providing smoother, quieter, and higher-load transmission, making them suitable for automotive and industrial machinery.

Why is the pitch circle important in gears?

The pitch circle is an imaginary circle that defines the effective contact point between two gears. It is crucial for calculating gear ratios and ensuring smooth meshing.

What is the role of gears in automobiles?

In automobiles, gears are used in transmissions, differentials, and steering systems. They help control speed, torque, and motion direction, ensuring smooth vehicle performance.

What is the advantage of worm gears?

Worm gears provide very high reduction ratios and can transmit motion at 90 degrees. They also have a self-locking feature, preventing reverse motion in applications like lifts and conveyors.

What are the advantages of gears over belts and chains?

Gears transmit motion more accurately, without slippage. They can handle higher loads in compact spaces and allow precise control of speed and torque.

What are the disadvantages of gears?

Gears are costly to manufacture, require lubrication, may generate noise and vibration, and are unsuitable for long-distance power transmission.

Where are internal gears used?

Internal gears are commonly used in planetary gear systems, such as automatic transmissions in cars, where compact and efficient power transfer is needed.
