The Bipolar Junction Transistor, or BJT, is one of the most vital components in modern electronics. From amplifying signals in audio devices to switching operations in digital circuits, BJTs play a fundamental role in enabling the world of semiconductor technology. Developed in 1947 by John Bardeen, William Shockley, and Walter Brattain at Bell Labs, this invention transformed electronics and paved the way for the microelectronics revolution.
What is a Bipolar Junction Transistor (BJT)?
A Bipolar Junction Transistor is a three-layer semiconductor device that uses both electrons and holes as charge carriers—hence the name bipolar. It consists of two p-n junctions connected back-to-back and can be of two types: NPN or PNP.
BJTs are primarily used for signal amplification and electronic switching. Their ability to control large currents using small base signals makes them indispensable in analog and digital applications.

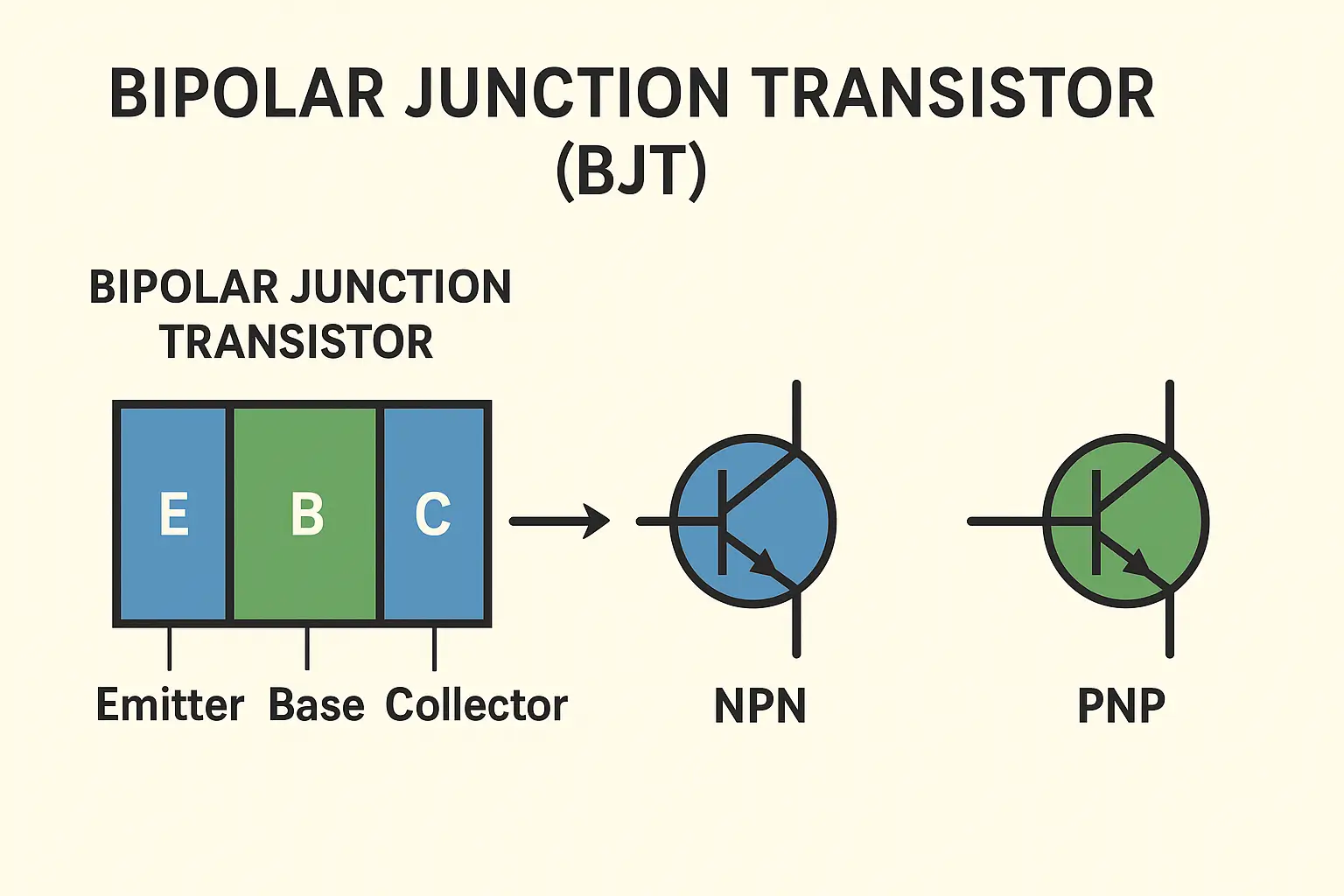

Construction of Bipolar Junction Transistor
A BJT has three regions and three terminals:
- Emitter (E) – Heavily doped to inject charge carriers.
- Base (B) – Very thin and lightly doped, allowing charge transfer.
- Collector (C) – Moderately doped and larger in size to collect carriers.
In an NPN transistor, two n-type materials sandwich a thin p-type base, while in a PNP transistor, two p-type materials surround an n-type base. The layers form two p-n junctions: the emitter-base junction and the collector-base junction.
Operation of Bipolar Junction Transistor
The working of a BJT depends on the biasing of its two junctions:
- Emitter-Base Junction: Forward-biased to allow carrier injection.
- Collector-Base Junction: Reverse-biased to enable carrier collection.
When a small current flows through the base-emitter junction, it controls a much larger current between the collector and emitter. This property enables the transistor to act as an amplifier or a switch, depending on the configuration and input signal.
Types of Bipolar Junction Transistor
NPN Transistor
In an NPN transistor, electrons are the majority charge carriers. When a positive voltage is applied to the base, it allows electrons to flow from emitter to collector, producing a controlled current flow. NPN types are commonly used due to higher electron mobility and efficiency.
PNP Transistor
In a PNP transistor, holes serve as the majority charge carriers. Current flows from the emitter to the collector when the base is negatively biased relative to the emitter. PNP transistors are often used where negative polarity control is needed.
Function of Bipolar Junction Transistor
The BJT primarily functions as:
- An Amplifier: It increases the amplitude of weak signals.
- A Switch: It controls current flow in digital logic circuits and power control systems.
Through precise base current control, a BJT can modulate or amplify signals with high accuracy.
Voltage, Charge Control, and Current
The BJT operates under the charge control principle, where the collector current is directly proportional to the charge injected into the base. The current gain (β) is defined as the ratio of collector current to base current (Ic/Ib).
Typical β values range between 20 and 1000, depending on transistor design and application.
Configuration of Bipolar Junction Transistors
BJTs can be connected in three different configurations:
- Common Base (CB) – Provides low input and high output impedance; used for high-frequency applications.
- Common Emitter (CE) – Most widely used; provides voltage and current amplification.
- Common Collector (CC) – Used for impedance matching; provides high input and low output impedance.
Each configuration exhibits distinct input and output characteristics, determining its suitability for specific circuit functions.
Characteristics of Transistor Configurations
| Configuration | Input Impedance | Output Impedance | Current Gain | Voltage Gain | Application |
|---|---|---|---|---|---|
| Common Base (CB) | Low | High | < 1 | High | RF amplifiers |
| Common Emitter (CE) | Medium | Medium | High | High | Audio amplifiers, switches |
| Common Collector (CC) | High | Low | High | < 1 | Buffer circuits |
Applications of BJT
Bipolar Junction Transistors are essential across various domains of electronics:
- Signal Amplifiers: Used in radios, televisions, and audio systems.
- Switching Circuits: Implemented in digital logic gates and control systems.
- Voltage Regulation: Serve as control elements in regulators and power supplies.
- Oscillators and Modulators: Used in waveform generation and communication circuits.
- Microcontrollers and Processors: Form part of integrated circuits in computing devices.
With the advancement of semiconductor materials and nanotechnology, BJTs continue to evolve for higher efficiency, smaller size, and greater frequency response.
Conclusion
The Bipolar Junction Transistor remains a cornerstone of modern electronics. Despite the rise of field-effect transistors (FETs), BJTs are still preferred in applications demanding high gain, precision, and linear amplification. Understanding their structure, operation, and characteristics provides a strong foundation for exploring advanced semiconductor technology.
Frequently Asked Questions (FAQ)
What is a Bipolar Junction Transistor (BJT) used for?
A Bipolar Junction Transistor is used for amplifying weak electrical signals and switching electronic currents. BJTs are key components in audio amplifiers, oscillators, power regulators, and digital logic circuits.
What are the two types of BJTs?
There are two main types of Bipolar Junction Transistors — NPN and PNP.
- In an NPN transistor, current flows from the collector to the emitter when a positive voltage is applied to the base.
- In a PNP transistor, current flows from the emitter to the collector when the base is negatively biased.
How does a BJT work?
A BJT works by using a small base current to control a much larger current flowing between the collector and emitter. This property enables it to amplify signals or act as an electronic switch in various circuits.
What are the three terminals of a BJT?
The three terminals of a BJT are:
- Emitter (E) – Injects charge carriers.
- Base (B) – Controls the current flow.
- Collector (C) – Collects the carriers and allows output current to flow.
What is the difference between NPN and PNP transistors?
The main difference lies in the direction of current flow and charge carriers:
- NPN transistors use electrons as majority carriers and require a positive base voltage.
- PNP transistors use holes as majority carriers and need a negative base voltage for operation.
What are the main configurations of BJT?
A BJT can be configured in three ways:
- Common Base (CB) – High voltage gain, low current gain.
- Common Emitter (CE) – Both voltage and current gain; most widely used.
- Common Collector (CC) – Used as a buffer; provides current gain but no voltage gain.
What are the applications of BJTs?
BJTs are used in:
- Amplifiers – Audio, RF, and instrumentation amplifiers.
- Switching circuits – Digital logic and power control.
- Voltage regulators – Stabilizing voltage in power supplies.
- Oscillators and modulators – Generating and processing signals.
What is the current gain (β) of a BJT?
The current gain, represented by β (beta), is the ratio of collector current (Ic) to base current (Ib). It indicates how effectively the transistor amplifies current. Typical β values range from 20 to 1000 depending on transistor type and application.
Author’s comment
So friends, I’m Pralay Bhunia, I hope I’ve been able to help you with this information about Bipolar Junction Transistor (BJT). If you have any more questions or suggestions, please feel free to share them in the comments. Your support always inspires me to share more new information.
